1) Water-resistant & durable: Made of durable Oxford water resistant cloth, it is ideal for outdoor activities such as camping, climbing, hiking, picnic...
2) Durable solar panels with PCB back sheet, no glass, no frame.
3) Made by high efficiency Hetero-junction/PERC/SunPower solar cells, the efficiency can reach 24% max.
4) Foldable and portable: It is convenient to carry wherever you go. It can be folded into a briefcase for easy transport. You can enjoy solar energy by placing the panel outside of your bag, absorbing solar energy while hiking or camping.
|
MONO/POLY |
Mono |
|
Item No. |
SFED-Z190M |
|
Solar Cell |
Mono cells |
|
Maximum power (Wp) |
190 |
|
Maximum power voltage (V) |
19.8 |
|
Maximum power current (A) |
9.6 |
|
Open circuit voltage (V) |
23.7 |
|
Short circuit current (A) |
10.5 |
|
Cell efficiency (%) |
≥21% |
|
Number of solar panel(Pcs) |
6*32W |
|
Folded size (mm) |
520*360 |
|
Open size (mm) |
2390*520 |
|
Front side material |
PET or ETFE |
|
Cloth color |
Black/Grey/Camouflage... |
|
Grommets |
Φ6mm/8mm/10mm |
|
Junction Box |
Optional |
|
Connector |

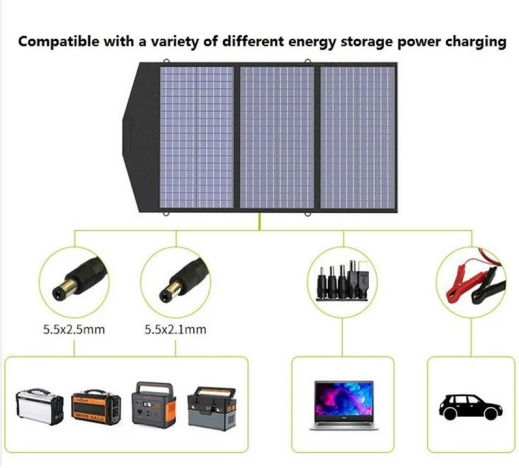

MC4/DC pin/Anderson/USB... |
|
Maximum System Voltage |
700V |
|
Maximum Series Fuse Rating |
20A |
|
Temperature Range |
-40---+85℃ |
|
Power guarantee |
5 years for the whole products, 90% power for 5 years, 80% power for 10 years. |
